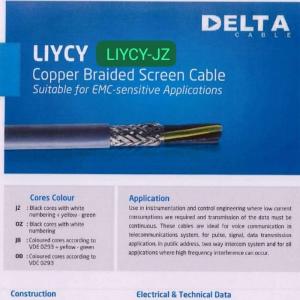

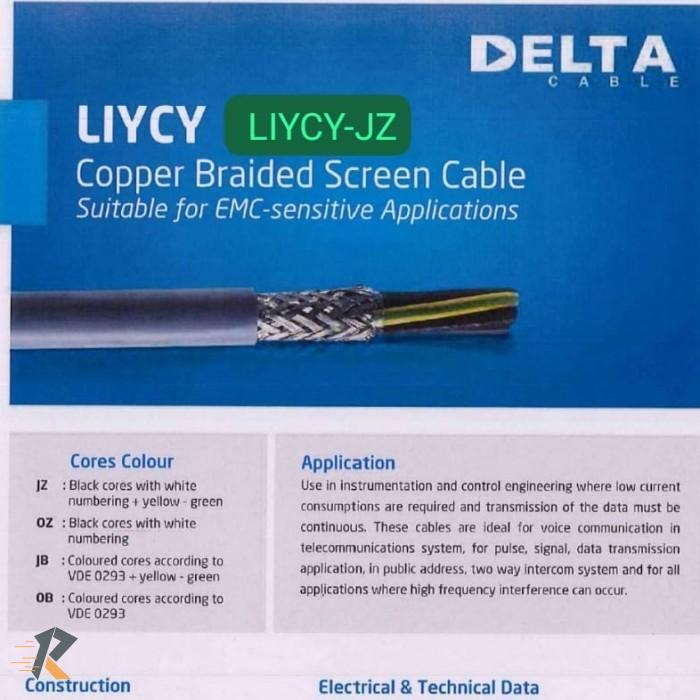

KABEL Screen LIYCY-JZ 12x1.5mm2 300/500V Grey Colour Cable DELTA
Free Shipping
1 & 1 Returns
Secure Payment
Become a Seller?Register now
Cores Colour
JZ: Black cores with white numbering +yellow - green
OZ: Black cores with white numbering
JB: Coloured cores according to VDE 0293 + yellow - green
OB: Coloured cores according to VDE 0293
Construction
Stranded bare copper conductor, fine wire strand structure as per IEC 60228, class 5
PVC insulated cores
Core twisted in layers
Screen of tinned copper wire braiding
PVC outer sheath
Sheath colour : grey, RAL7001
Application
Use in instrumentation and control engineering where low current consumptions are required and transmission of the data must be continuous. These cables are ideal for voice communication in telecommunications system, for pulse, signal, data transmission application, in public address, two way intercom system and for all applications where high frequency interference can occur.
Electrical & Technical Data
Working voltage Uo/U : 300/500 V
Test Voltage: 1000 VAC/1 min
Insulation Resistance : ≥ 20 MΩ x km
Min. Bending Radius: approx. 15 x cable diameter
Temperature range: -50C to 700C (moved)
-300C to + 700C (Unmoved)
Flame retardancy: IEC 60332-1
JZ: Black cores with white numbering +yellow - green
OZ: Black cores with white numbering
JB: Coloured cores according to VDE 0293 + yellow - green
OB: Coloured cores according to VDE 0293
Construction
Stranded bare copper conductor, fine wire strand structure as per IEC 60228, class 5
PVC insulated cores
Core twisted in layers
Screen of tinned copper wire braiding
PVC outer sheath
Sheath colour : grey, RAL7001
Application
Use in instrumentation and control engineering where low current consumptions are required and transmission of the data must be continuous. These cables are ideal for voice communication in telecommunications system, for pulse, signal, data transmission application, in public address, two way intercom system and for all applications where high frequency interference can occur.
Electrical & Technical Data
Working voltage Uo/U : 300/500 V
Test Voltage: 1000 VAC/1 min
Insulation Resistance : ≥ 20 MΩ x km
Min. Bending Radius: approx. 15 x cable diameter
Temperature range: -50C to 700C (moved)
-300C to + 700C (Unmoved)
Flame retardancy: IEC 60332-1
