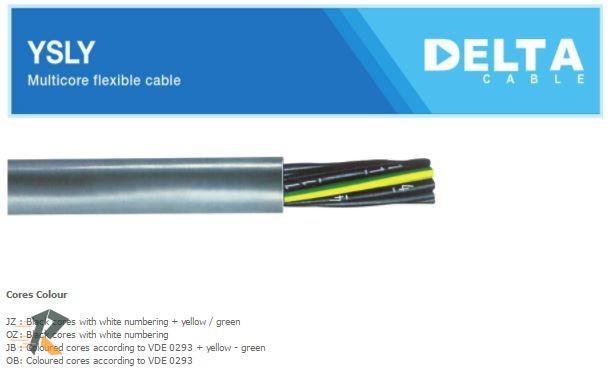

Kabel YSLY-JZ 4 X 0.5 mm / Kabel Control / YSLY 4 X 0.5 /DELTA

Construction

Conductor: Stranded bare Cu conductor,
fine wire strand structure according to IEC-60228, class 5
Insulation : Special quality PVC
Sheath : PVC
Sheath : PVC, grey colour, flame retardant to IEC 60332-1

Application

This cable is used as control and connecting cables for tooling machinery, production lines, conveyor and assembly line as well as in construction plant. This cable is ideal for medium loads and flexible application for free movements without forced movement and tensile load. Suitable to use for installation in dry, moist and wet rooms, indoor.

Electrical & Technical Data

Rated voltage : 300/500V
Test voltage : 1000VAC/1 min
Insulation Resistance : min. 20 MΩ x Km
Max. working temperature : 700C
Min. laying temperature : -50C
Bending radius : 15 x cable diameter
