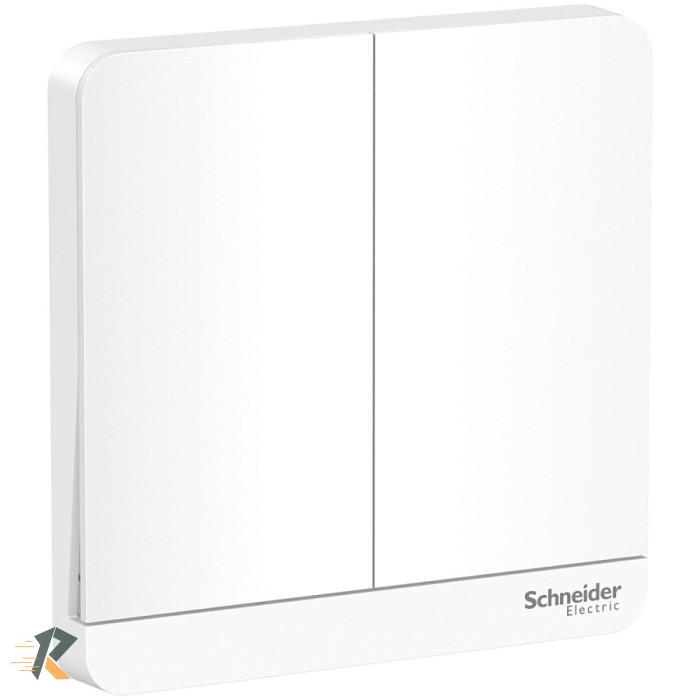

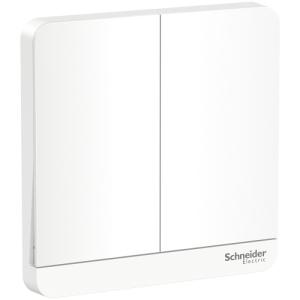

Schneider Electric AvatarOn Saklar 2Gang 1Arah - Putih

SCHNEIDER 16AX 250V 2G 1W SW W LED
Main
product or component type
Switch
device application
Control
load type
Incandescent lamp
Inductive
Fluorescent lamp
Resistive
colour tint
White
Complementary
device presentation
Complete product
rated current
16 AX at 250 V AC 50/60 Hz
switch function
1-pole 1-way
number of gangs
2 gangs
number of rocker
2
clamping connection capacity
3 x 2.5 mm for solid cable(s)
3 x 2.5 mm for stranded cable(s)
4 x 1.5 mm for solid cable(s)
4 x 1.5 mm for stranded cable(s)
connections - terminals
Brass terminal
local signalling
Off: LED indicator, LED (amber)
material
Polycarbonate: grid plate
Polycarbonate: base
Polycarbonate: dolly
Polycarbonate: frame
Polycarbonate + GF 20 %: actuator
device mounting
Surface
Flush
width
86 mm
height
86 mm
depth
34.2 mm
Environment
IP degree of protection
IP20
maximum ambient air temperature for operation
45 C
operating altitude
2000 m
relative humidity
095 %
environmental characteristic
UV resistant
standards
SS 227-1
IEC 60669-1
MS IEC 60669-1
